VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Riverside, CA | Meridian Windows and Doors Riverside

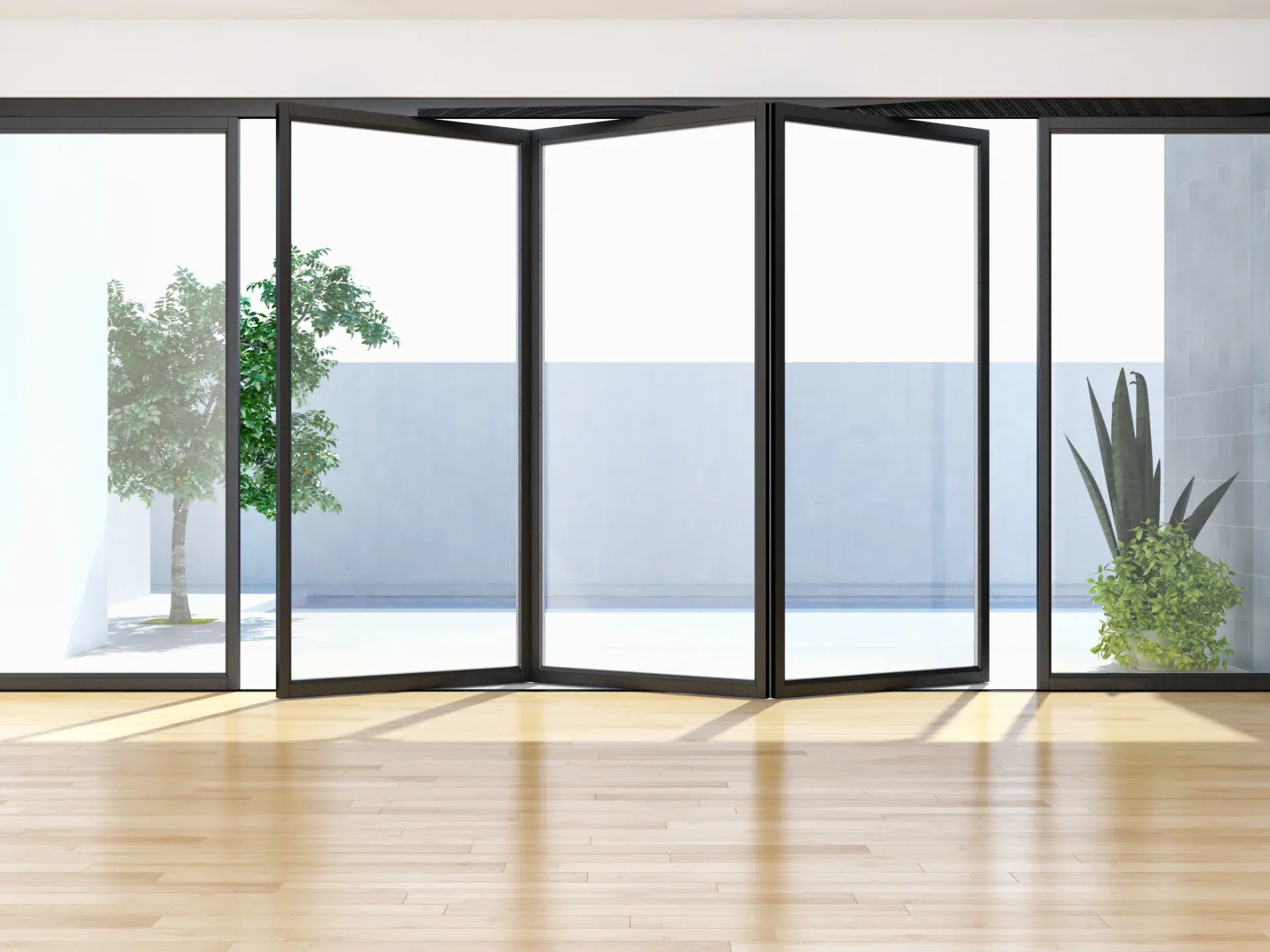

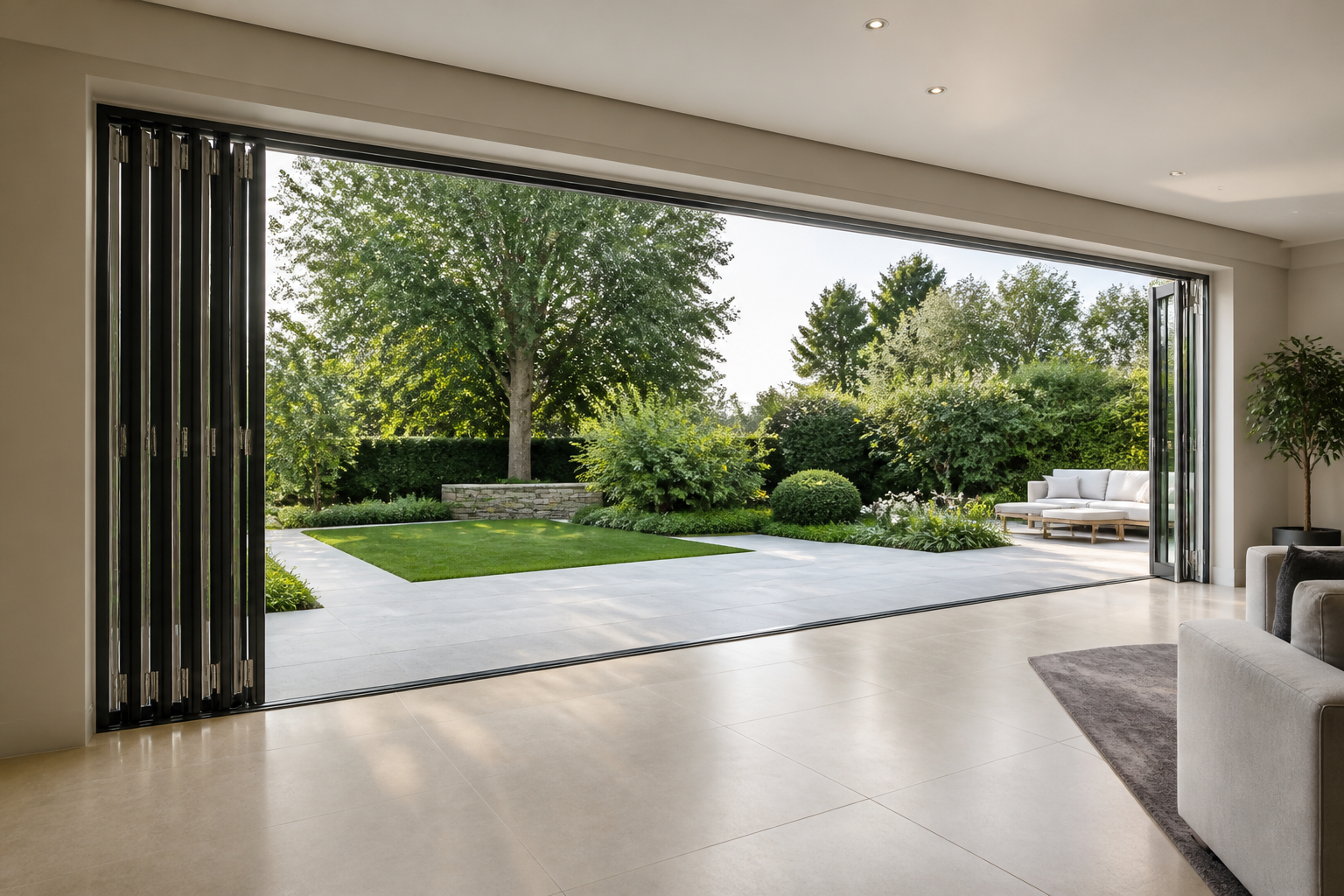

The VLX 100 bifold door is an accordion-style aluminum system that opens your wall from corner to corner, connecting a Riverside living room or kitchen directly to the patio, pool, or backyard. These doors fold panel by panel and stack cleanly to one or both sides, so the entire opening becomes usable space. We’re an authorized ViewLux installation partner, which means you get a factory-backed product with local installation expertise from Meridian Windows and Doors Riverside. We’ve been fitting these systems in Riverside homes long enough to know exactly how they perform in our summer heat and our occasional winter downpours. Call (831) 217-8612 to schedule a free on-site measurement.

Call (831) 217-8612

Product Overview – VLX 100 Bifold / Folding Door

The VLX 100 series is built around one idea: when you want the wall gone, the wall should actually disappear. These accordion-style panels fold flat, leaving a wall-to-wall opening with no center post obstructing the view. The design works equally well on a modern box-style home in Canyon Crest, a Spanish-influenced house in the Wood Streets, or a mid-century ranch in Hawarden Hills. Buyers choose this series when they want the durability of aluminum without the heavy look of older commercial-grade systems.

What sets the VLX 100 apart is how the engineering disappears. The aluminum frame is slim enough to keep sightlines open but thick enough to stay rigid through years of daily cycling. Each panel rolls on a smooth track system that won’t bind or sag when a six-panel, 20-foot span is folded open. The folding geometry means you’re not just getting a big door, you’re getting a structural opening that can be left partially open for air or fully open for entertaining. In Riverside, where outdoor living is usable eight to ten months a year, this door changes how a house is lived in.

Technical Specifications

Here’s what the VLX 100 brings to the table, framed in plain language so you know exactly what you’re comparing:

• Frame wall thickness: 0.098 inches, a heavier gauge that holds straight through heat cycles and daily use.

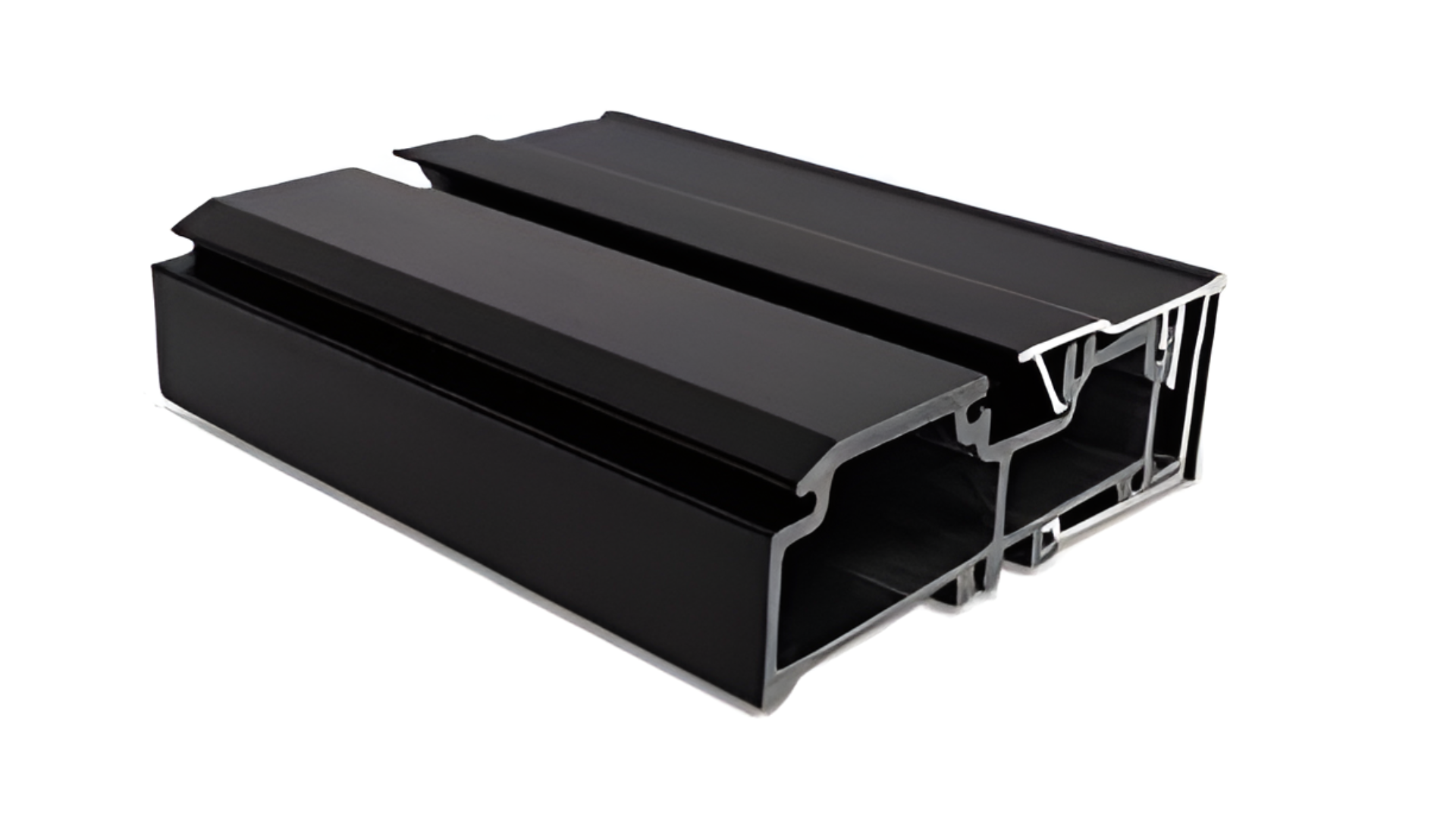

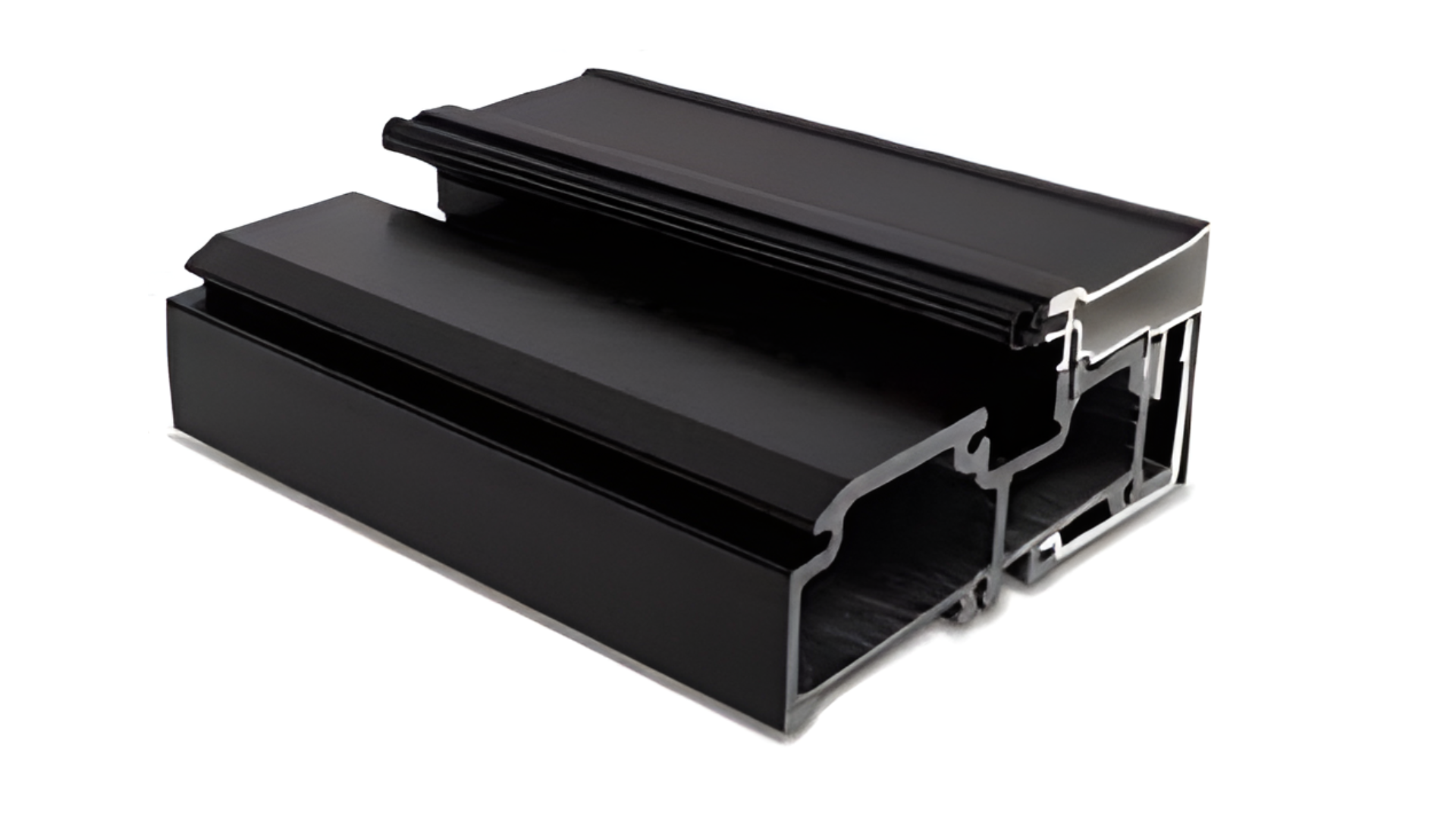

• Profile width: 2.56 inches, slim enough to keep views open while retaining strength.
• Maximum span: up to 20 feet wide across the opening.
• Panel configurations: 2-panel, 3-panel, 4-panel, 5-panel, and 6-panel track layouts.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or none, depending on how you use the opening.
• Installation standard: AAMA 2400/2410 compliant, with AAMA 812 foam sealant at every perimeter joint.

Every option above can be mixed and matched during your consultation with Meridian Windows and Doors Riverside. We’ll walk you through what each choice means for your specific opening size and exposure.

Performance Features

Thermal Efficiency – The VLX 100 uses thermal break technology, which separates the interior and exterior aluminum faces so heat doesn’t conduct straight through the frame. With Low-E glass specified, the system is NFRC-rated. That matters in Riverside, where July sun can push surface temperatures past 140 degrees on an unshaded west wall.

Acoustic Performance – Sound control ratings on this system are strong for an operable glass wall. The tight-sealing panels keep street noise from Arlington Avenue or the 91 freeway from bleeding into your living space. If you’re near a high-traffic corridor, laminated glass upgrades push that performance further.

Airtightness & Weather Seal – Each panel compresses against weatherstripping when closed, and the perimeter is sealed with AAMA 812 low-expansion foam. That means no drafts around the edges of the opening, no whistling in Santa Ana winds, and consistent indoor air pressure.

Waterproofing – The track system includes weep channels and a gasketed sill design that sheds water away from the interior floor. We also verify drainage during installation, because a bifold door in a Riverside patio conversion that doesn’t shed rain properly becomes a flooring problem the first winter it rains.

Wind Resistance – Wind-load ratings on the VLX 100 are calculated for the specific opening size and exposure. Homes on elevated lots in Alessandro Heights or near the Box Springs Mountain foothills get more wind than a sheltered lot in Magnolia Center, and we spec the glass and hardware accordingly.

Security & Hardware – Impact-resistant laminated glass is available as an upgrade. The folding hardware includes multi-point locks that engage at the top and bottom of the panels, and the heavy aluminum frames resist prying far better than hollow vinyl alternatives.

Color & Glass Options

Finish selection changes how the door reads from inside and outside the house. Premium Black gives you that sharp, gallery-style frame that works beautifully on white stucco or gray siding. Pure White disappears into bright interiors and suits Spanish and Mediterranean exteriors common throughout Riverside. Anodized Silver reads as architectural and industrial, a good match for mid-century and contemporary renovations. Bronze is warmer and hides dust and water spots, which helps in our dry, dusty months. Champagne adds a subtle luxury tone that pairs well with warm wood floors and stone accents. Teak Wood is a wood-grain aluminum finish that gets you the look of timber without the swelling, warping, and repainting that real wood demands in Riverside’s low-humidity heat.

For glass, Clear maximizes visible light. Low-E cuts solar heat gain and is the smart default for west and south-facing Riverside walls. Tempered is standard for safety at floor level. Laminated adds impact resistance and sound reduction. Gray Tint and Black Tint reduce glare and are popular for openings that face sunsets over the Santa Ana River basin.

Installation by Meridian Windows and Doors Riverside in Riverside

A bifold door is only as good as its installation. The VLX 100 is a precision system: the track must be perfectly level, the jambs plumb, the opening square. If any of those are off by even a fraction of an inch, the panels bind, the seals don’t compress, and the door never operates the way it should. Improper installation can also void the manufacturer warranty, which is one reason so many Riverside homeowners end up calling us after seeing lower-cost installs fail.

Our process starts with a pre-install inspection of the opening, the floor, and the header. We assess whether the existing structure will carry the weight of a 20-foot opening without deflection. Then we set the frame level, plumb, and square, using shims and structural fasteners rather than foam to hold the frame in place. The perimeter gets sealed with AAMA 812 low-expansion foam to create an airtight edge, and the sill is installed with proper drainage slope. We finish with a water test along the exterior face, then adjust every panel so it glides with one hand. Cleanup includes removing the old door and all installation debris.

Riverside-specific considerations matter here. Our summer heat cycles expand and contract aluminum significantly, which is why we anchor frames to accommodate thermal movement. Winter rain events, while brief, can be intense, and the sill flashing has to be right the first time. We also coordinate with local building codes and can pull permits when your project requires them.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

What is the lead time for the VLX 100 Bifold / Folding Door?

Most VLX 100 orders are delivered to our Riverside shop within 4 to 6 weeks from the date the order is confirmed and the deposit is paid. Custom sizes and specialty glass options can extend that timeline. Call (831) 217-8612 and we’ll give you a current lead time based on your exact configuration.

Does the VLX 100 qualify for energy tax credits?

The VLX 100 with Low-E glass may qualify for federal energy-efficiency tax credits if it meets the NFRC ratings required under current IRS rules for exterior doors. We’ll provide the NFRC documentation for your order so you can check eligibility with your tax professional. Call (831) 217-8612 to discuss which glass package gives you the best balance of performance and incentive eligibility.

What warranty comes with the Bifold / Folding Door?

ViewLux provides a manufacturer warranty on the VLX 100 frame and hardware, and we provide a workmanship warranty on our Riverside installation. Specific warranty terms depend on the finish and glass package you select. We’ll go over the full warranty document with you at quote. Call (831) 217-8612 to get a copy before you commit.

Can I customize the size?

Yes. Within the 20-foot maximum span, we order each VLX 100 to fit your exact opening. Panel widths adjust based on the total width and the number of panels you choose. If your opening is unusual, structural clearances and wind-load requirements may affect what’s achievable, and we’ll review that during your free measurement. Call (831) 217-8612 to schedule it.

How do I maintain aluminum frames?

Wipe the frames down with mild soap and water every few months, clean the track with a vacuum and a dry cloth to keep debris from building up, and lubricate the rollers and hinges once a year with a silicone-based lubricant. Riverside’s dust and dry air make track cleaning more important than in coastal climates. If a panel ever starts binding, call us before forcing it, a minor adjustment is cheaper than a replacement roller. Reach us at (831) 217-8612.

Get a Quote – VLX 100 Bifold / Folding Door in Riverside

Ready to see what a VLX 100 would look like across your back wall? We’ll bring finish samples, glass samples, and a tape measure to your Riverside home, take exact dimensions, and put a written quote in your hands with no pressure and no obligation. Call Meridian Windows and Doors Riverside at (831) 217-8612 and let’s get your indoor-outdoor living project started.

Written by the team at Meridian Windows and Doors Riverside, authorized ViewLux installation partner serving Riverside, CA.
