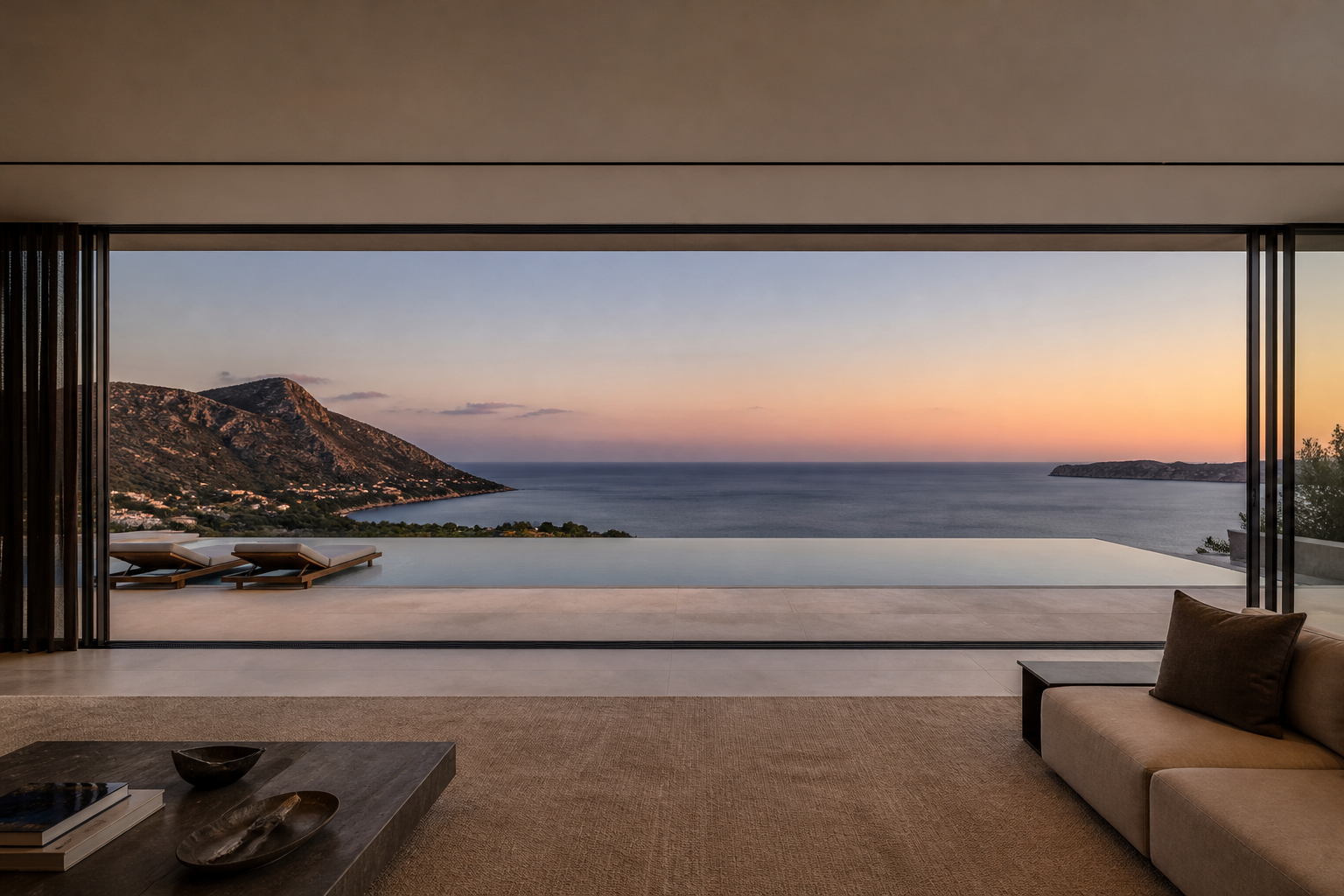

The VLX 138 Panoramic Sliding Door is what you choose when a standard patio door won’t do. Built around a substantial 0.138-inch wall profile with a 1.535-inch frame width, this is a large-span aluminum system designed for one thing: uninterrupted glass, floor to ceiling, opening your Riverside home to the outdoors. Homeowners in areas like Canyon Crest, Mission Grove, and Alessandro Heights specify it for great-room remodels, hillside builds with city-light views, and any project where the view is the point. Meridian Windows and Doors Riverside is an authorized ViewLux installation partner, which means you get the genuine product, installed to factory standards, with the warranty intact. Call (831) 217-8612 to discuss your project.

Call (831) 217-8612

Product Overview – VLX 138 Panoramic Sliding Door

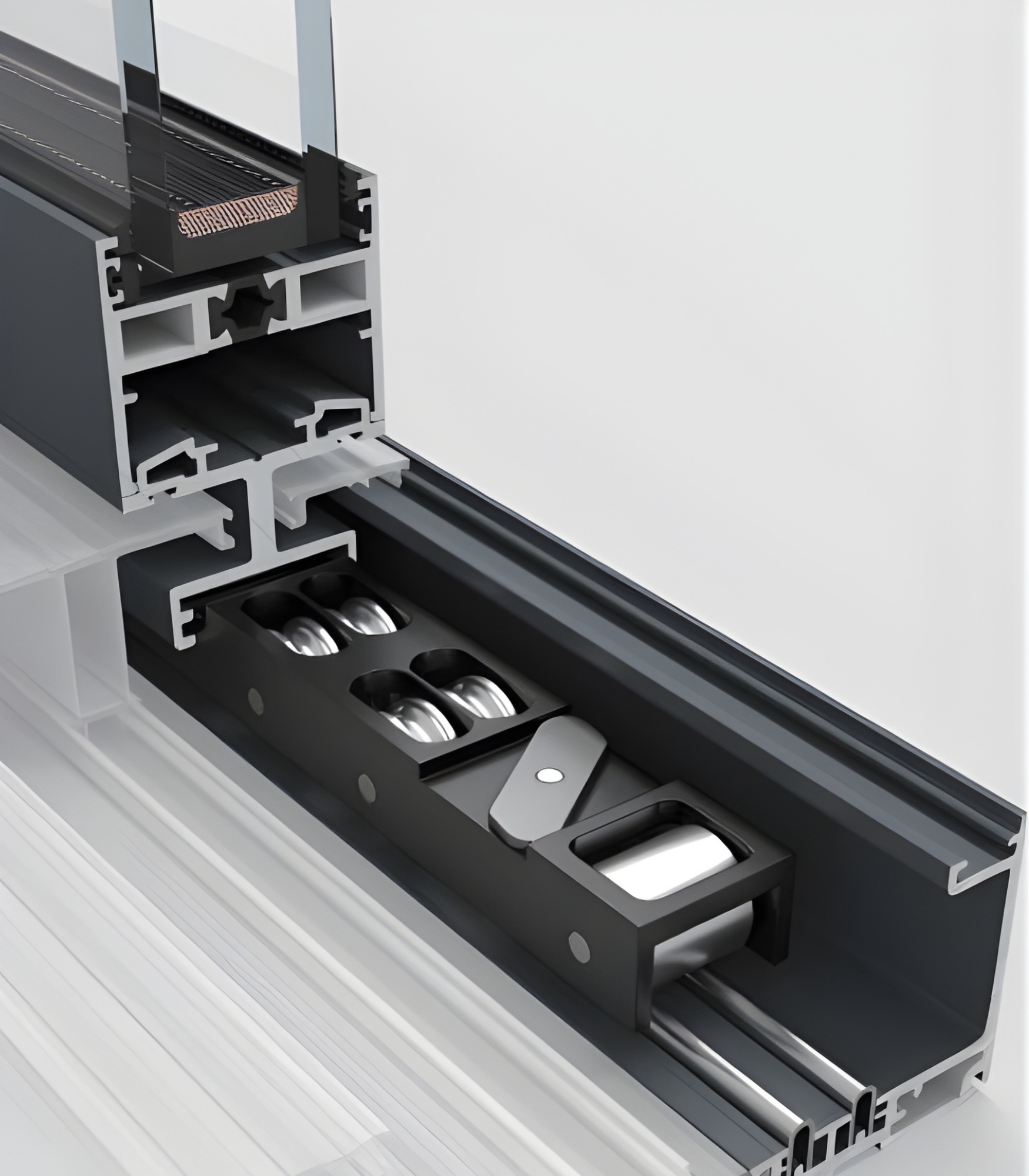

The VLX 138 solves a problem we hear constantly in Riverside: how do you get a huge wall of glass that still opens like a door, without the frame eating the view, and without a track that fights you every time you slide it? This series was engineered around that tension. The 0.138-inch wall profile adds structural rigidity without adding visual weight, so the frame stays slim while the panel stays true. The result is a luxury large-span panoramic slider: expansive uninterrupted views, ultra-smooth glide on stainless bearings.

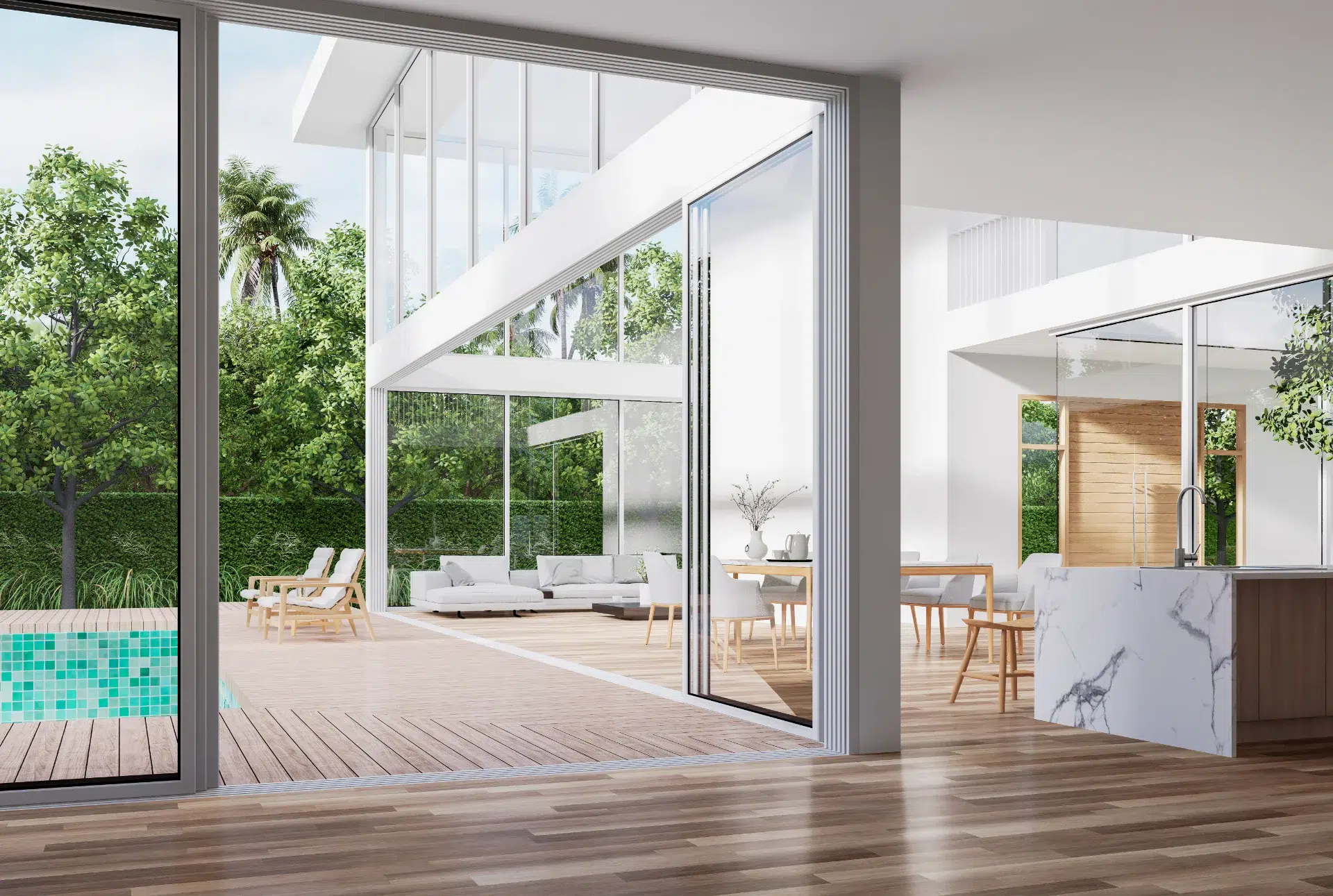

Architecturally, the VLX 138 fits where a folding door feels busy and a fixed window feels closed off. Mid-century modern ranchers in Wood Streets get a clean, horizontal line that respects the original design. Newer builds in Orangecrest and La Sierra get a contemporary glass wall that reads as intentional architecture, not an add-on. The aluminum frame handles Riverside’s temperature swings without warping, and the stainless bearing rollers carry panels that weigh hundreds of pounds with almost no effort. If you’ve ever wrestled a vinyl slider that binds on the track, this is a completely different experience.

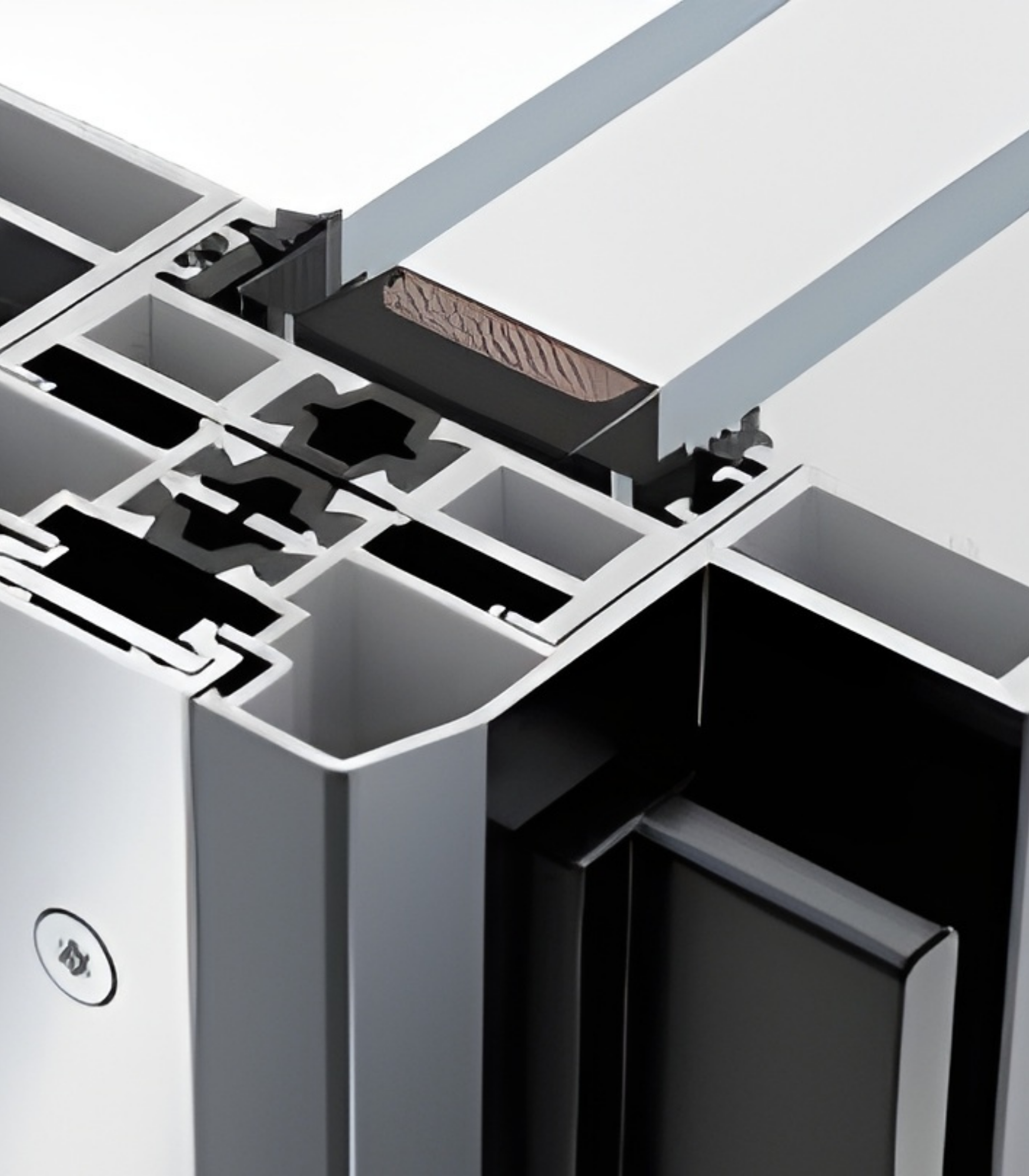

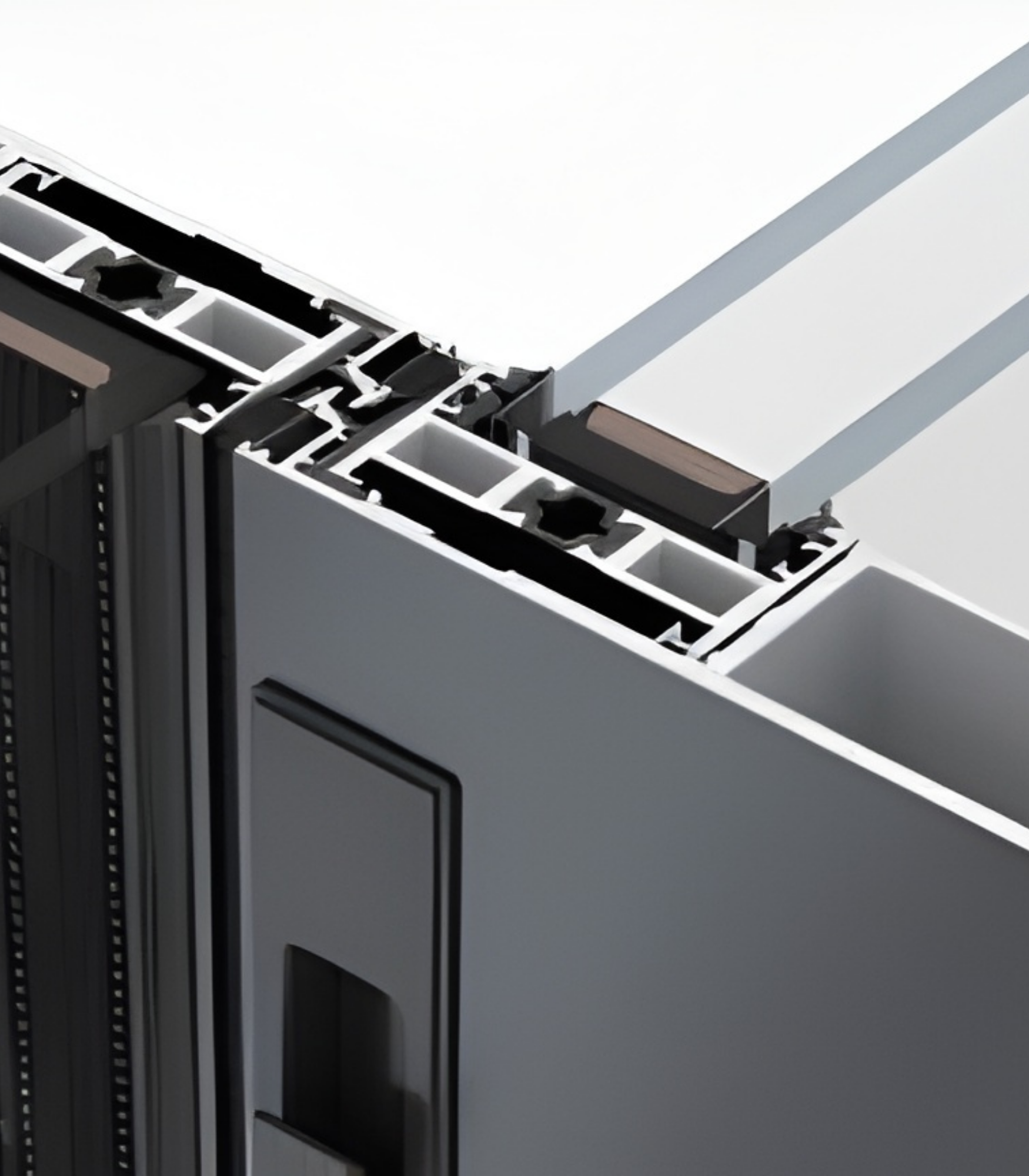

Buyers choose this series because they want the view, but they also want the door to work ten or fifteen years from now the way it works on day one. The engineering underneath the finish is what separates the VLX 138 from commodity sliders: reinforced rails, precisely machined bearing pockets, and corner joinery that keeps the frame square under load. That’s what makes it a luxury product rather than a large product.

Technical Specifications

Here are the working numbers for the VLX 138 as we configure it for Riverside homes:

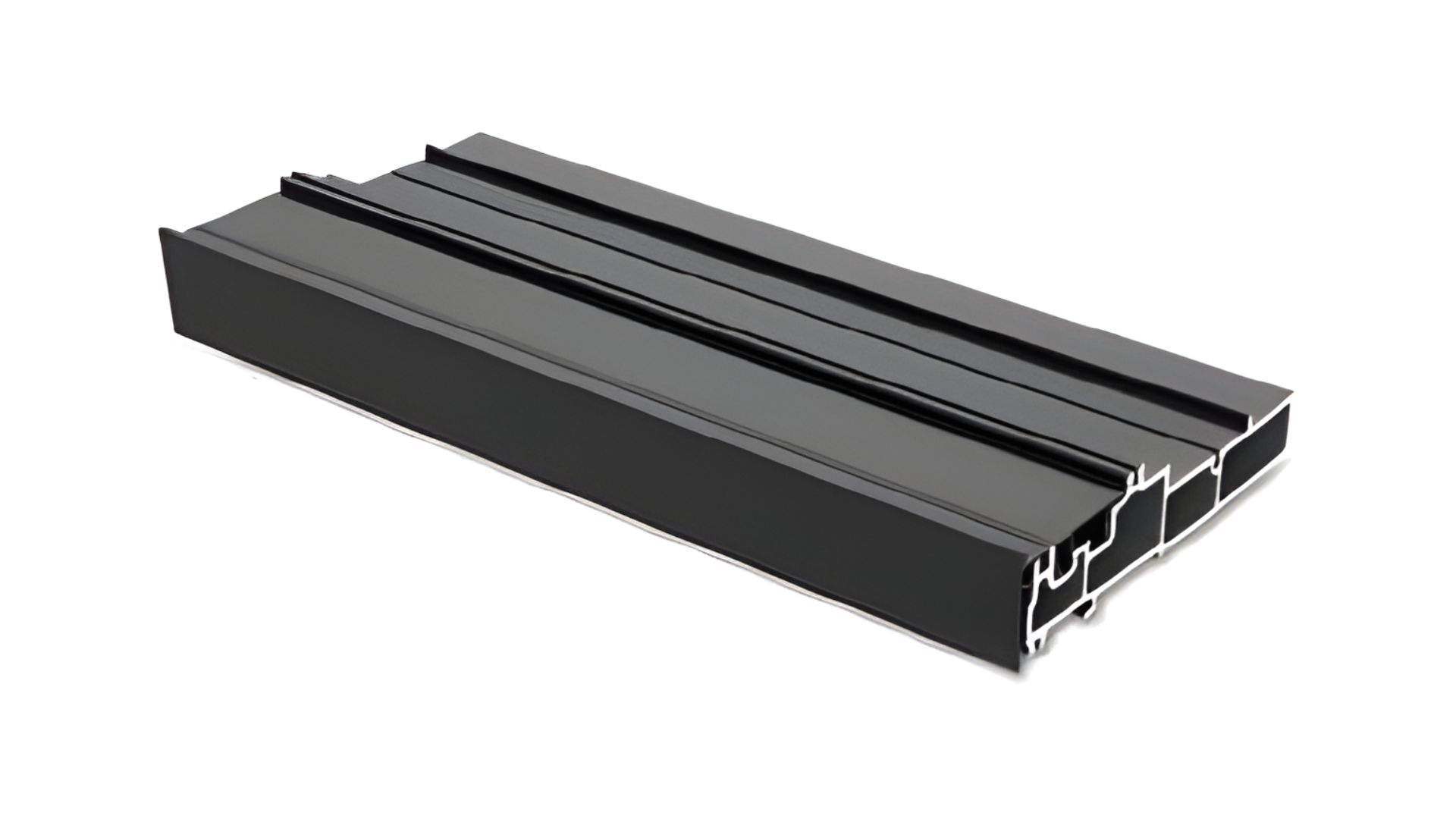

• Wall thickness: 0.138 inches, giving the extrusion the backbone to handle wide spans without deflection
• Profile width: 1.535 inches, slim enough to keep sightlines clean, deep enough to carry substantial glass
• Maximum span: Up to 36 feet wide, depending on panel count and track configuration
• Track configurations: 2-Track, 3-Track, and 4-Track, so you can do a two-panel pocket slider or a four-panel stack-away wall
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint, plus impact-resistant laminated glass where the project calls for it
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or Sliding Screen
• Sill options: Flush Sill, Low-Profile Sill, or Recessed Sill, depending on your flooring and accessibility goals

If you’re comparing systems, the 0.138 wall gauge is the number that matters most. It’s thicker than entry-level extrusion, which typically runs 0.060 to 0.080 inches. That extra aluminum is why the VLX 138 can span so far without sagging.

Performance Features

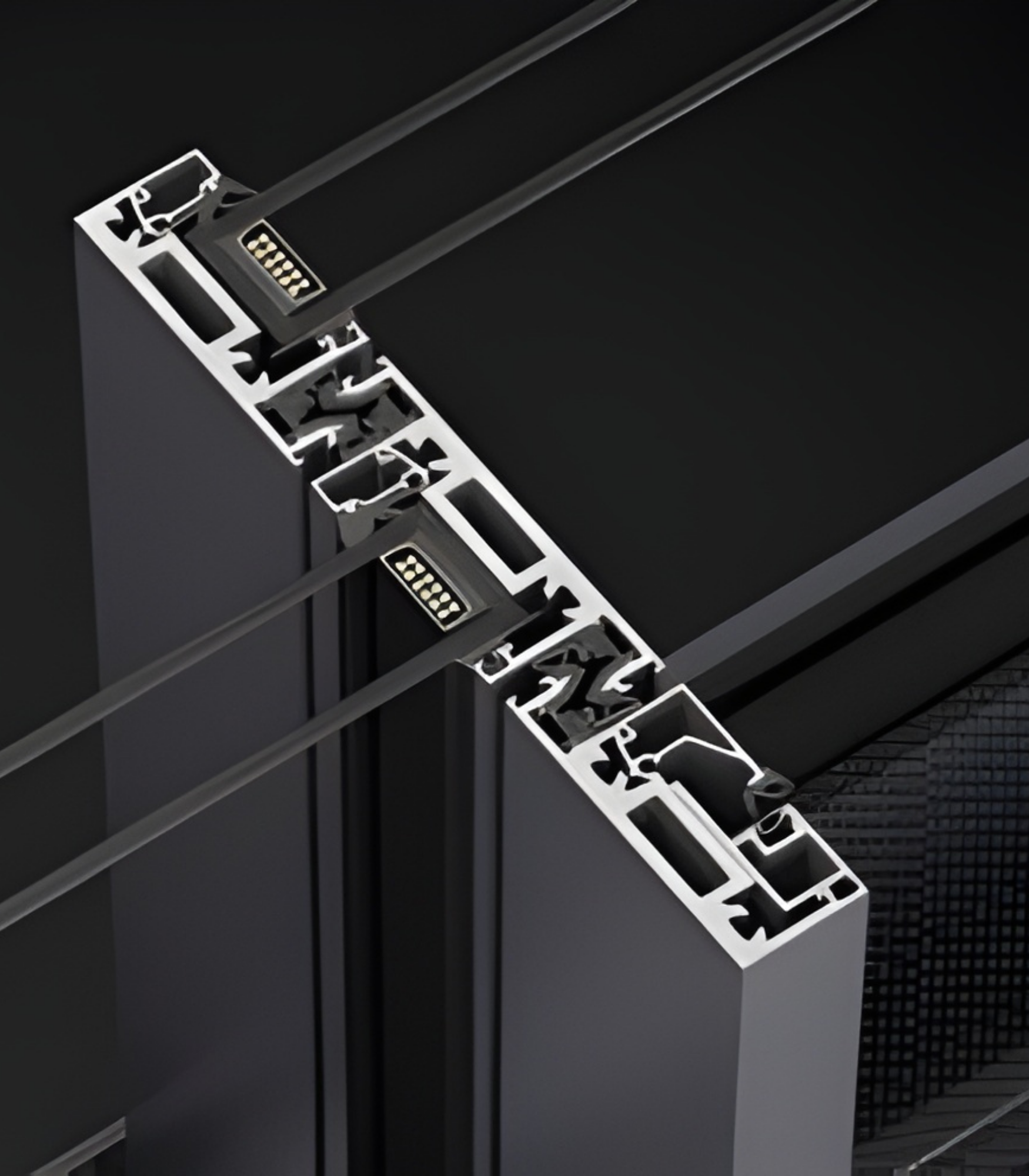

Thermal Efficiency. The VLX 138 uses thermal break technology to separate the interior and exterior aluminum, which is what earns it NFRC-rated energy performance. For a Riverside summer, that means less heat radiating through the frame into your living room, and lower cooling bills from June through September. Low-E glass compounds the effect.

Acoustic Performance. If your home sits near the 91, the 215, or a busy arterial like Magnolia Avenue, sound control matters. The thicker wall profile and quality weather seals reduce noise transfer noticeably compared to builder-grade sliders. Adding laminated glass takes it a step further, which is why we recommend it for homes backing up to traffic corridors.

Airtightness & Weather Seal. Every perimeter joint on a standard aluminum system installation gets AAMA 812 low-expansion foam sealant. That’s not an upgrade for us; it’s the baseline. Airtightness ratings on this class of door keep conditioned air inside and dust out, which matters during Santa Ana wind events when fine grit pushes against every opening in the house.

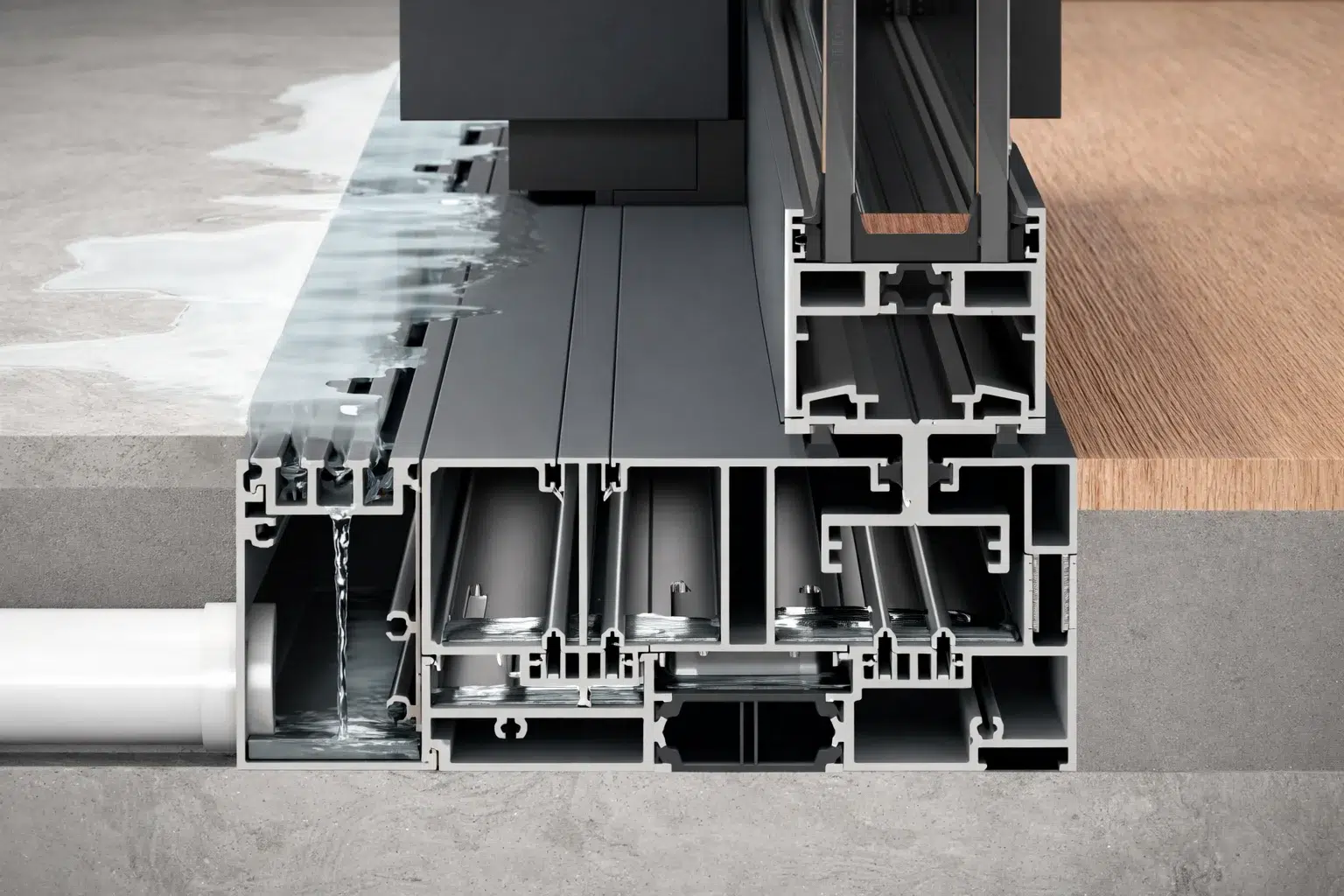

Waterproofing. The combination of an engineered sill, proper flashing, and a sealed perimeter keeps water outside. Riverside gets roughly 10 inches of rain a year, but when it rains, it often comes hard and fast. The VLX 138 is designed for that, with drainage paths built into the frame and sill options that direct water away from the interior.

Wind Resistance. The VLX 138 is wind-load rated for local climate requirements. That’s a real factor in Riverside, where Santa Ana winds can gust at 50 mph or more, especially in the hills around Box Springs and Sycamore Canyon. A door that rattles in the wind is a door that’s under-engineered for this area.

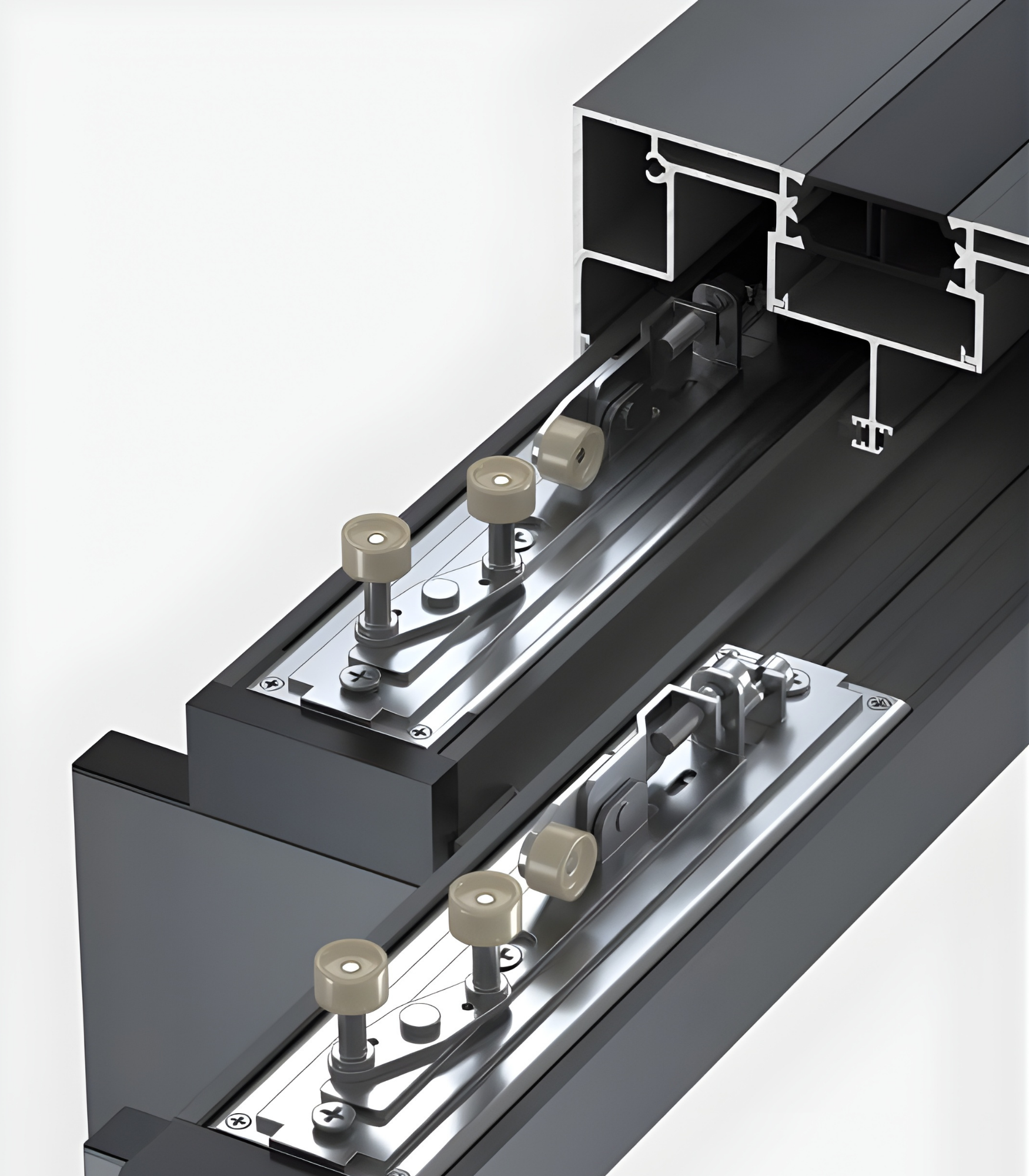

Security & Hardware. The locking hardware on the VLX 138 is built into the frame, not bolted on as an afterthought. Multi-point locks engage along the panel height, and the stainless bearing system rides on a rail that resists lifting. Impact-resistant laminated glass is available if you want the added protection of glass that holds together under force.

Color & Glass Options

The VLX 138 comes in six finish options, and the right choice depends on your home’s architectural language. Premium Black is the default for modern and contemporary Riverside homes, especially where you want the frame to recede and the glass to dominate. Pure White suits traditional Spanish Revival and ranch styles common in Victoria and Palm Heights. Anodized Silver gives you that raw aluminum look that pairs well with mid-century builds. Bronze is the right call for Tuscan and Mediterranean homes across Alessandro Heights, where dark bronze window frames already set the tone. Champagne adds warmth without going full wood-grain, and Teak Wood is a powder-coated wood-look finish for houses where a true wood aesthetic matters but aluminum durability is non-negotiable.

Glass selection drives both comfort and privacy. Clear maximizes visible light and heat gain. Low-E is the energy-conscious pick for west-facing openings. Frosted and Obscure give you privacy on bathroom-level or street-facing panels. Black Tint and Gray Tint cut glare, which is helpful for rooms flooded with afternoon sun. Riverside’s UV index is high year-round, so the tinted options also help protect furniture and flooring from fading.

Installation by Meridian Windows and Doors Riverside in Riverside

We’re not a retailer that hands you a box and wishes you luck. Meridian Windows and Doors Riverside installs every VLX 138 according to AAMA 2400/2410 installation standards, which is the benchmark for fenestration installation in the United States. That means the opening gets a full pre-install inspection, the frame is set level, plumb, and square, and the perimeter is sealed with AAMA 812 low-expansion foam before any trim goes on. Then we run a water test, cycle the door, and walk you through operation and care.

Why does installation standard matter for a product like this? A 12-foot or 24-foot sliding door exerts real force on its frame every time it moves. If the frame isn’t square, the rollers bind. If the sill isn’t level, water pools instead of draining. If the perimeter isn’t sealed, you’ll feel a draft on the first cold night. And if the installation isn’t done by an authorized partner, the manufacturer warranty is void. That’s the part nobody tells you when you’re shopping on price: a compromised installation kills your warranty before you’ve ever opened the door.

Riverside adds its own considerations. Our summers push 100 degrees or more, and aluminum frames expand under that heat. Our winters, though mild, bring temperature swings that test any seal. And building codes in the City of Riverside require proper flashing and water management on all exterior door openings. We factor every one of those into the install. The result is a door that works like the day it was set on year one, year five, and year fifteen.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in Riverside

Ready to see the VLX 138 on your wall? Call Meridian Windows and Doors Riverside at (831) 217-8612 to start a project or schedule a free on-site measurement. We’ll bring finish samples, glass samples, and real numbers, not catalog guesses. Your view deserves a door built to match it.

Written by the team at Meridian Windows and Doors Riverside, serving Riverside, CA and surrounding communities as an authorized ViewLux installation partner.
