VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Riverside, CA | Meridian Windows and Doors Riverside

The VLX 500 Single & Double Hung Window is a clean, vertical-glide aluminum window that works hard in Riverside’s hot, dry climate without asking for much in return. Homeowners choose it for the tilt-in sashes that make cleaning a two-minute job from inside the house, the narrow 2.36-inch profile that maximizes glass area, and the fact that aluminum doesn’t warp, swell, or rot when the Santa Ana winds kick through the Inland Empire. Meridian Windows and Doors Riverside is an authorized ViewLux installation partner, which means you get the factory product and a local crew that installs it to AAMA standards. Call (831) 217-8612 to schedule a free measurement.

Call (831) 217-8612

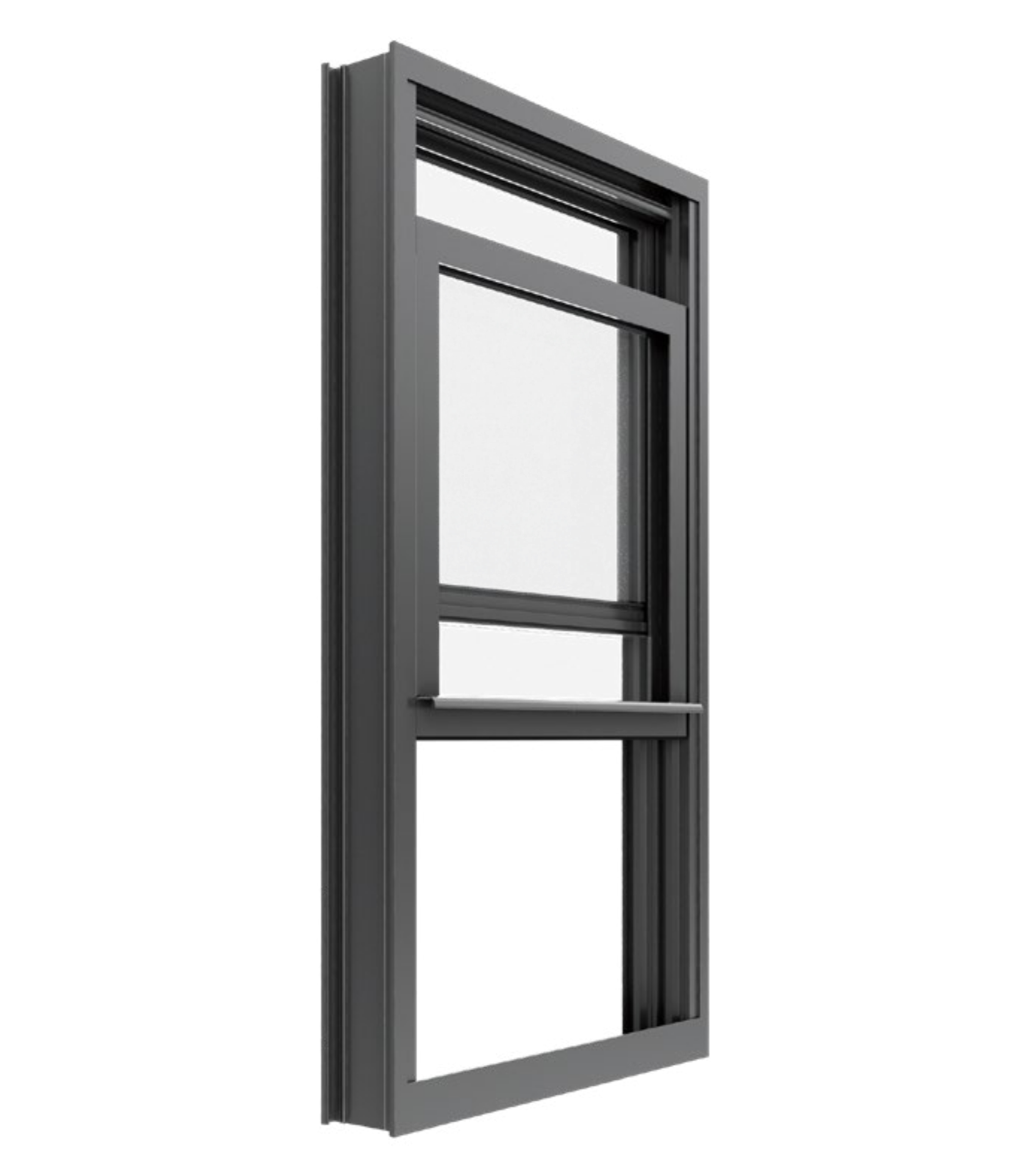

Product Overview – VLX 500 Single & Double Hung Window

The VLX 500 series is built around a simple principle: a classic window design, modernized with engineering that Riverside homeowners can actually feel. Single hung windows keep the top sash fixed while the bottom glides up and down. Double hung lets both sashes move, so you can open the top for ventilation without creating a ground-level opening. That flexibility matters in Riverside, where morning marine air from the Santa Ana River corridor gives way to 100-degree afternoons, and you want airflow control that doesn’t compromise security.

The defining feature here is the tilt-in sash mechanism. Both sashes on the double hung version tilt inward, which means you can wash the exterior-facing glass from inside your living room. No ladders, no second-story balancing acts, no scheduling a window cleaner twice a year. For single-story homes in Wood Streets or two-story houses in Mission Grove, that convenience carries real weight.

What makes this window hold up over time is the aluminum construction combined with a 0.079-inch wall thickness. That’s a heavier extrusion than you’ll find in entry-level aluminum windows, and it translates to less flex, tighter corners, and sashes that keep gliding smoothly years after installation. Meridian Windows and Doors Riverside has installed this series across Riverside’s older neighborhoods, where original wood windows from the 1950s and 60s are failing at the joints and leaking conditioned air. The VLX 500 doesn’t just replace those windows. It changes how the house performs.

Call (831) 217-8612 if you want to see a sample in person. We bring the product to you.

Technical Specifications

Here’s what’s under the hood. These numbers matter when you’re comparing products, and they’re the same specs we walk through during a consultation.

VLX 500 Single & Double Hung – Spec Sheet

• Frame wall thickness: 0.079 inches. Stronger than standard residential aluminum extrusions. Resists racking and keeps sashes aligned.
• Profile width: 2.36 inches. A slim sightline that maximizes visible glass, especially important when you’re replacing bulky old frames.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated. Mix and match per window location.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Half-screen (covers the operable lower sash only) or full-screen (covers the entire opening).
• Operation: Single hung (bottom sash moves) or double hung (both sashes move and tilt in).
• Thermal performance: Thermally broken aluminum profile, rated under NFRC standards.
• Installation standard: AAMA 2400/2410 compliant, installed by Meridian Windows and Doors Riverside.

Performance Features

Thermal Efficiency

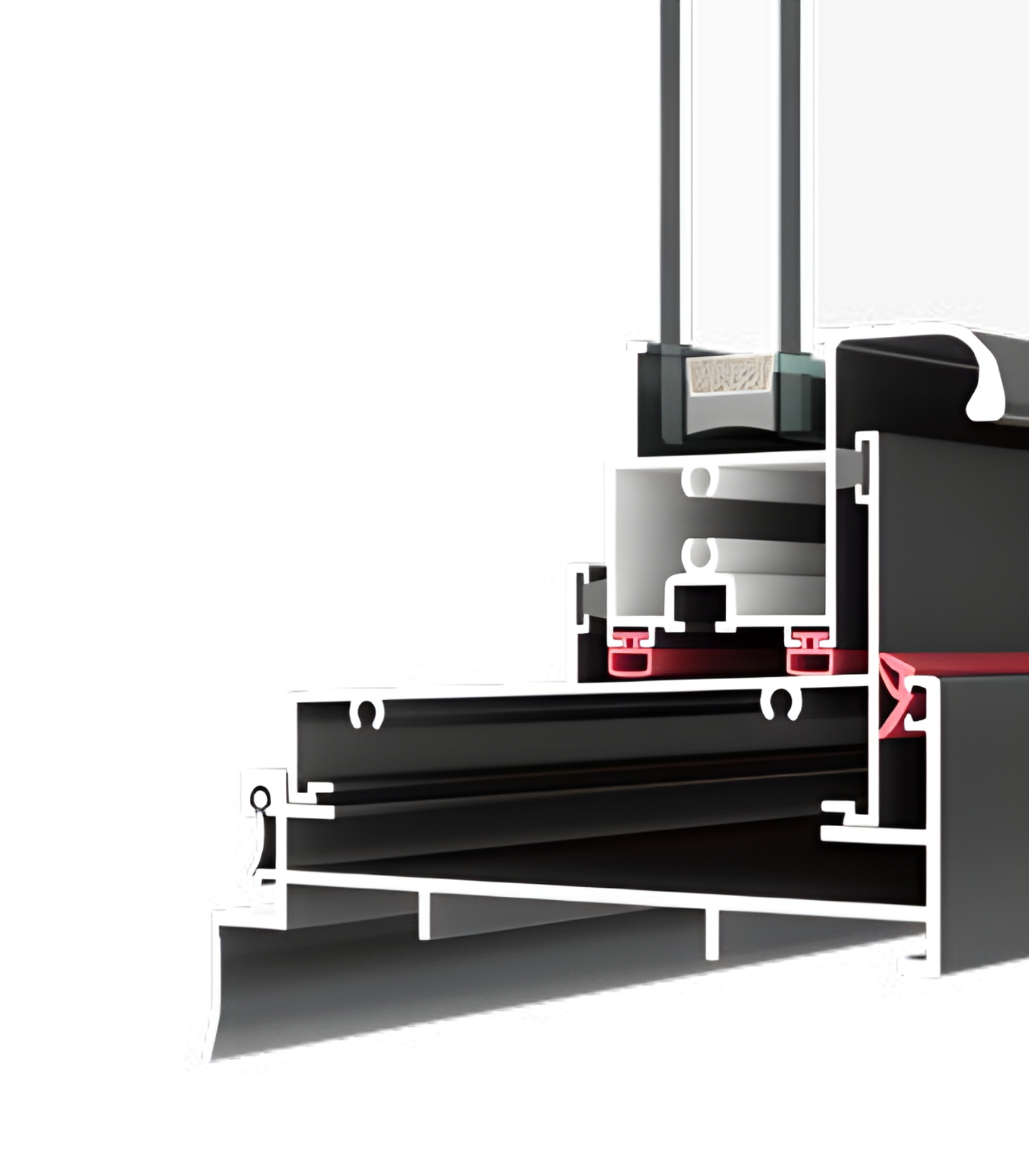

The VLX 500 uses a thermal break in the aluminum frame to interrupt heat transfer between the outside and inside. In Riverside, where summer temperatures regularly pass 95 degrees, that break is the difference between a window that bakes your wall and one that holds the line. NFRC-rated performance keeps your cooling bills predictable, and pairing the frame with Low-E glass compounds the effect.

Acoustic Performance
Aluminum is naturally dense, and when you combine a rigid 0.079-inch frame with properly sealed laminated glass, you get meaningful sound reduction. That matters on busy streets like Magnolia Avenue, near the 91 freeway, or anywhere in Riverside where road noise bleeds into bedrooms. The VLX 500 locks out more noise than older single-pane wood or aluminum windows.

Airtightness & Weather Seal
Every VLX 500 we install in Riverside gets AAMA 812 low-expansion foam sealant around the full perimeter. That’s the standard Meridian Windows and Doors Riverside applies on every job, not an upgrade. Combined with the window’s integral weatherstripping, it stops dust intrusion during Santa Ana wind events and keeps conditioned air where it belongs.

Waterproofing
Riverside gets about 11 inches of rain annually, but when it rains, it often comes in short, hard bursts. The VLX 500’s drainage design channels water away from the sill and out the weep system, and our perimeter installation method prevents moisture from penetrating the rough opening. No swollen frames, no water stains on interior drywall.

Wind Resistance
Santa Ana winds gust through the Riverside foothills at 50 to 70 mph. The VLX 500 is wind-load rated for the local climate, and the reinforced frame holds its shape under sustained pressure. When installed level, plumb, and square per AAMA 2400/2410, the sash stays locked and the seals stay tight.

Security & Hardware
The VLX 500 uses a cam-action lock system that pulls the sash tight against the frame for a secure seal. Add laminated or tempered glass, and you’ve got a window that resists forced entry far better than old wood windows with surface-mounted latches. For Riverside homeowners concerned about neighborhood safety, this series is a meaningful upgrade.

Color & Glass Options

You have six finish options on the VLX 500, and they cover a wide range of Riverside architecture. Premium Black is the current favorite for modern and transitional homes in Hawarden Hills and Alessandro Heights. It reads sharp against stucco and pairs well with black garage doors or light fixtures. Pure White stays classic and works on anything from a 1920s Spanish bungalow to a new tract home. Anodized Silver is the no-fuss choice with a metallic finish that hides fingerprints and subtle scratches. Bronze leans mid-century, especially on ranch homes in neighborhoods like Victoria or Canyon Crest. Champagne is warmer than silver and brings a softness that suits earth-toned exteriors. Teak Wood gives you the look of stained wood without the maintenance, which is why we see it on a lot of Riverside’s older craftsman homes where owners want to preserve the aesthetic.

On glass, Clear is the baseline, and fine for shaded or north-facing rooms. Frosted works for bathrooms, side yards, or any window that faces a neighbor. Low-E is the pick for Riverside’s west and south exposures, cutting solar heat gain and UV damage to furniture. Tempered is required by code near doors and in certain locations, and we’ll flag that during measurement. Laminated adds impact resistance and sound reduction, which makes it worth considering for front-facing windows or homes near arterial roads.

Installation by Meridian Windows and Doors Riverside in Riverside

Here’s the thing about window installation that most people don’t learn until it’s too late: a great window installed badly is a bad window. The VLX 500 is a precision product, and it only performs to spec when the rough opening is prepped correctly, the frame is set level, plumb, and square, and the perimeter is sealed with the right materials in the right sequence.

Meridian Windows and Doors Riverside installs every VLX 500 to AAMA 2400/2410 standards. That’s the nationally recognized installation standard for window replacement, and it’s what keeps your manufacturer warranty intact. ViewLux warranties cover product defects, but they explicitly don’t cover failures caused by improper installation. We’ve seen cases where other installers set windows without shims, skipped the AAMA 812 foam seal, and six months later the homeowner’s got dust lines around the frame and a draft they can feel on a December morning.

Our process in Riverside goes like this: we start with a pre-install inspection of the rough opening, checking for rot, water damage, and framing issues that need correction before the window goes in. We don’t hide problems and cover them with trim. If something’s wrong, you’ll know before we start. Then we set and shim the window until it’s dead level and the reveals are consistent on all four sides. We foam the full perimeter with AAMA 812 low-expansion sealant, which fills the gap without bowing the frame. We run a final water test to confirm drainage works. And we haul the old windows and jobsite debris away when we’re done.

Riverside’s building codes matter here too. Tempered glass requirements near doors, egress minimums for bedrooms, and title 24 energy compliance all factor into which VLX 500 configurations are code-compliant for your specific openings. We handle that assessment during the measurement appointment, free of charge.

Frequently Asked Questions – VLX 500 Single & Double Hung Window

Get a Quote – VLX 500 Single & Double Hung Window in Riverside

If you’re replacing windows in Riverside and the VLX 500 is on your short list, the next step is simple. Call Meridian Windows and Doors Riverside at (831) 217-8612 and we’ll schedule a free on-site measurement. We’ll bring product samples, verify your rough openings, confirm code requirements, and give you a written quote with no surprises. No pressure, no games. Just numbers you can plan around.

Written by the team at Meridian Windows and Doors Riverside, authorized ViewLux installation partner serving Riverside, CA and the surrounding Inland Empire.
